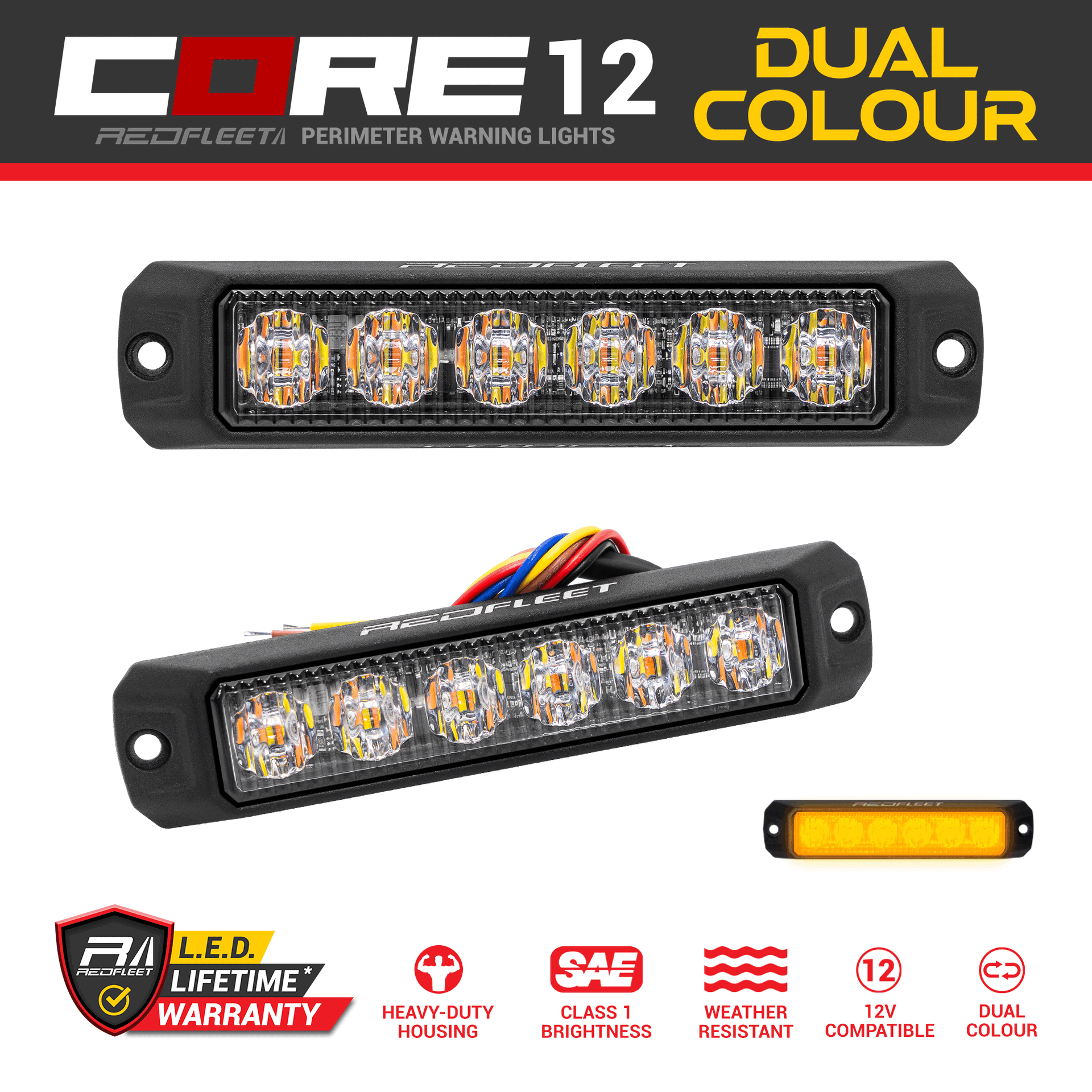

CORE Series 12 L.E.D. AMBER + YELLOW (DUAL-COLOUR) Surface Mount Vehicle Perimeter Warning Light

REDFLEET

$3,025.00

L.E.D. WARNING COLOUR(S)
VALUE PACKS
Quantity

VERY POPULAR - REDFLEET CORE Series 12 L.E.D. *Dual-Colour* Smart Perimeter Vehicle Warning Light. with Lifetime* L.E.D. Australian Warranty.

Introducing our all-new updated CORE Series, REDFLEET's baseline Low Profile Surface Mount Perimeter Warning Light featuring our all new exclusive SAFETY YELLOW suitable for vehicles operating in any WHS and public roads application where the highest safety level is required.

Featuring a die-cast alloy housing combined with durable poly-carbonate optical lens, the CORE Series is designed for work vehicles that require a powerful warning signal. Using the latest long life L.E.D. technology and circuit board design, CORE Series lights generate an ultra high intensity warning light exceeding all Australian benchmarks set by competitor products.

Backed by our REDFLEET L.E.D. Lifetime* Warranty, CORE Series is the best value for money choice for an effective and powerful warning light!

Product Features & Technical Specifications

Dimensions: 130(L) x 28(W) x 12(H)mm

  • 12 x EXOLED Ultra-High Intensity L.E.D.s
    • 6 Diodes per Warning Colour
      • Colour 1 = Warning Amber
      • Colour 2 = Safety Yellow
  • User Selectable Flashing Patterns
    • 10 x for Dual Colour Mode
  • Superior Daytime Performance
  • Low Profile Heavy Duty Alloy Housing Design
  • Durable Poly-Carbonate Lens
  • Directional Internal Reflector Optics
  • Available in Solid or Dual Colour Configurations
  • Synchronise Multiple Units
  • Colourless When Not Illuminated
  • SAE J595 Class 1 Approved
  • ECE R65 + R10 Certified
  • 10-30V DC Multi Voltage Ready
  • IP67 Dust, Vibration & Weather Resistant
  • Temperature Range -30˚C to +50˚C
  • Low Current Long Life L.E.D.s
  • Maintenance Free Solid State Design


MY24 WIRING CONFIGURATION

  • BLACK = Negative Ground
  • RED = Activates Colour 1 (Apply Positive))
  • BROWN* = Activates Colour 2 (Apply Positive)
  • YELLOW = Pattern Select (Momentary Positive)
    • Combine YELLOW Wires for Synchronise Function
  • WHITE = Night Mode Dimming (Apply Positive)
SKU: RF-C12D-AY-50X
