NEW RAZORBACK V2 Single Head Flashback Shield REDFLEET CORE 12D "Dual-Colour" L.E.D. Warning Lights

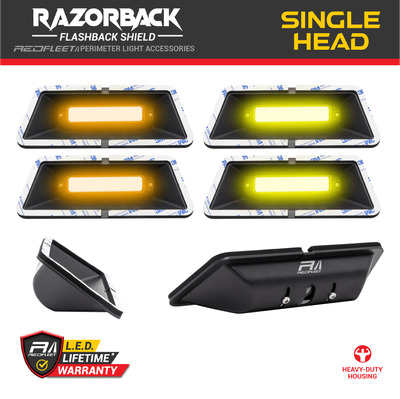

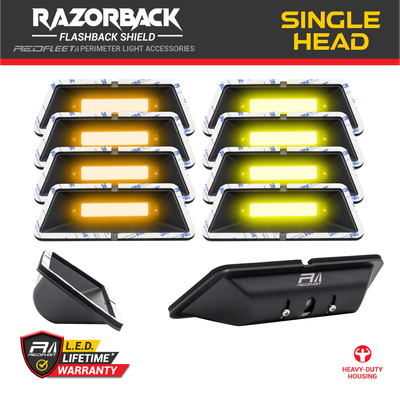

ALL-NEW REDFLEET RAZORBACK V2 23cm SINGLE HEAD Universal Flashback Shield for Glass Mounted Vehicle Applications + CORE 12 Dual-Color LED Perimeter Warning Light

The updated RAZORBACK V2 Universal Flashback Shield by REDFLEET is now available in both single and twin head configurations. Designed with versatility and performance in mind, the RAZORBACK V2 features an angle-adjustable design, making it ideal for virtually any glass-mounted application — including windscreen, visor, rear window, or side window installations.

Built to enhance driver safety and light efficiency, the RAZORBACK V2 reduces flashback glare while maintaining maximum light output and visibility for emergency response, fleet, or utility vehicles.

With its rugged construction, premium materials, and universal fit, the RAZORBACK V2 is the go-to choice for professionals who demand both functionality and style in their vehicle lighting installations.

CORE 12 Product Features & Technical Specifications

Dimensions: 130(L) x 28(W) x 12(H)mm

• 12 x EXOLED Ultra-High Intensity L.E.D.s
  • 6 Diodes per Warning Colour

    • Colour 1 = Warning Amber
    • Colour 2 = Safety Yellow
• User Selectable Flashing Patterns

  • 10 x for Dual Colour Mode
• Superior Daytime Performance
• Low Profile Heavy Duty Alloy Housing Design
• Durable Poly-Carbonate Lens
• Directional Internal Reflector Optics
• Available in Solid or Dual Colour Configurations
• Synchronise Multiple Units
• Colourless When Not Illuminated
• SAE J595 Class 1 Approved
• ECE R65 + R10 Certified
• 10-30V DC Multi Voltage Ready
• Max Current Draw:

  • Single Colour Mode = 1.1A @ 13V DC
  • Dual Colour Mode = 1.3A @ 13V DC
  • 1.5A @ 12.8V DC
  • 0.8A @ 24V DC
• IP67 Dust, Vibration & Weather Resistant
• Temperature Range -30˚C to +50˚C
• Low Current Long Life L.E.D.s
• Maintenance Free Solid State Design

MY24 WIRING CONFIGURATION

• BLACK = Constant Negative Ground
• RED = Activates Colour 1 (Apply Positive))
• BROWN* = Activates Colour 2 (Apply Positive)
• YELLOW = Pattern Select (Momentary Positive)

  • Combine YELLOW Wires for Synchronise Function
• WHITE = Night Mode Dimming (Apply Positive)
