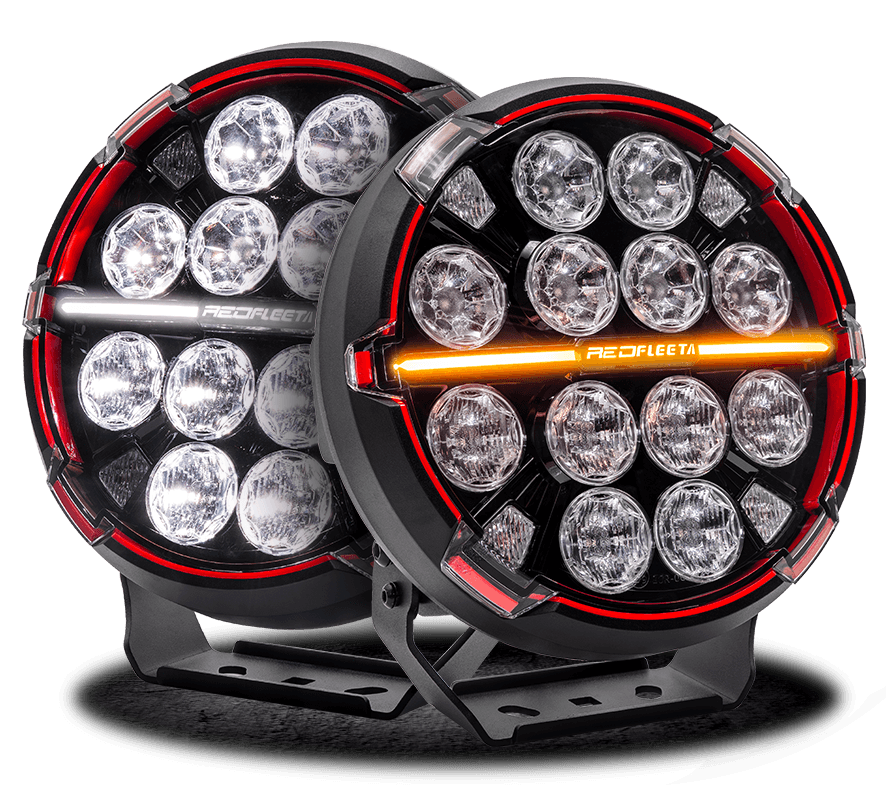

MONARC 9X2K FEATURES & SPECIFICATIONS
driving light MODE
MAX CURRENT DRAW: 10A @ 13.5V DC | 5A @ 28V DC
MAX LUMENS COUNT: RAW @ 32,800 | TESTED @ 21,600
POWER DRAW: 260 WATT
PEAK INTENSITY: 260,000 CANDELA
INGRESS PROTECTION: IP69K
COLOUR TEMPERATURE (CCT): 5700K
VOLTAGE COMPATIBILITY: 10-30V DC
HOUSING CONSTRUCTION: ALUMINIUM
RATINGS & APPROVALS
ECE R10, ECE R65 CLASS 1, IP69K

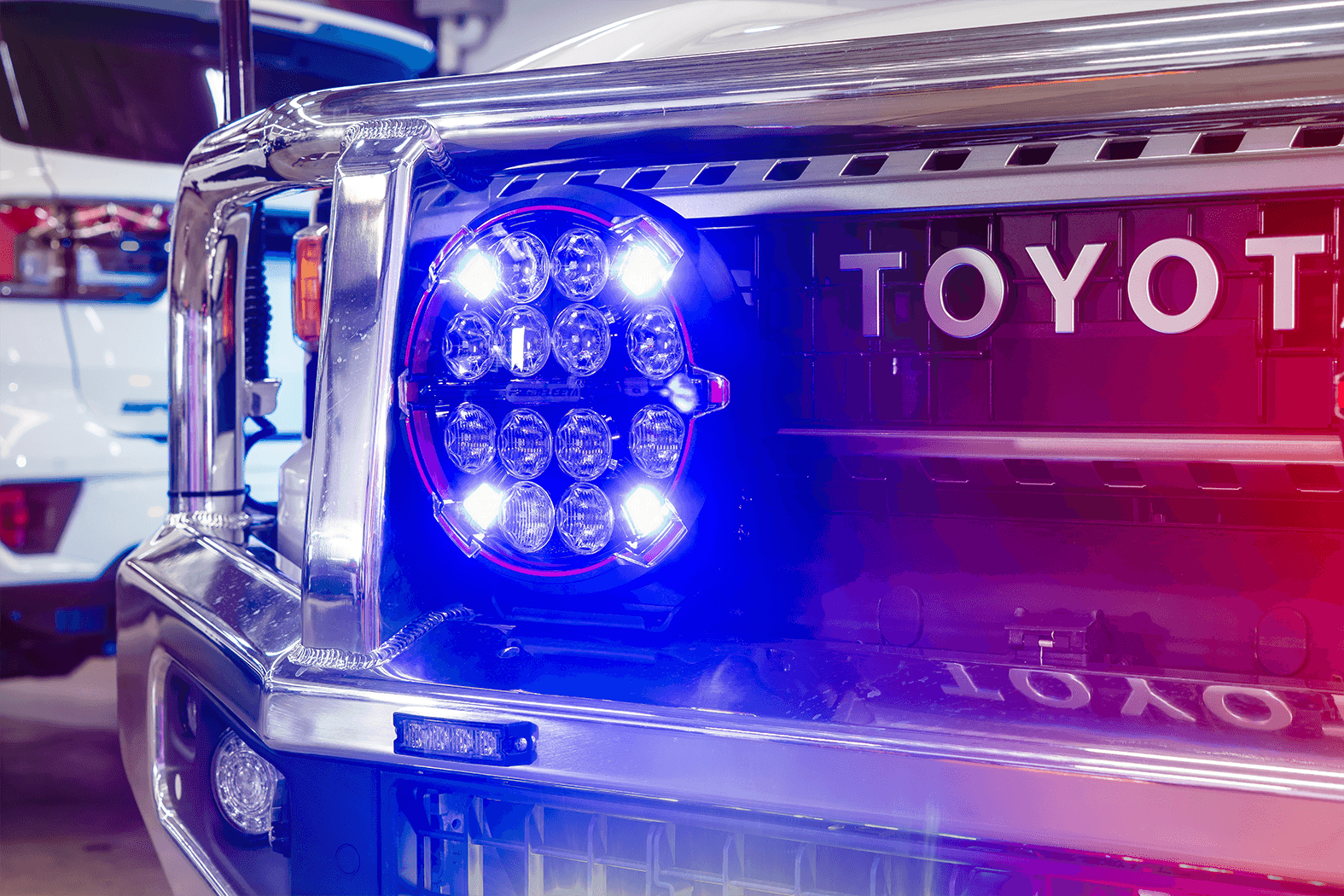

warning LIGHT MODE
CURRENT DRAW: (12V) 2A @ 13.5V - (24V) 1A @ 28V
LED NUMBER: 8 PCS
APPROVALS: ECE R10, ECE R65 CLASS 1
FLASH PATTERNS: 8 FLASH PATTERNS
COLOUR OPTIONS: AA, BR
MULTI-function LIGHT
DRIVING LIGHT, WARNING LIGHT, DRL
MONARC WARRANTY
L.E.D. LIFETIME WARRANTY*
FLASH PATTERNS
SINGLE FLASH
DOUBLE FLASH
ALTERNATE SINGLE FLASH
ALTERNATE DOUBLE FLASH
QUINT FLASH
BURST FLASH
MEGA FLASH
COMBO
WIRING INSTRUCTIONS
